HUNTER ST-1600 SYSTEMS
Original price was: $367.00.$97.99Current price is: $97.99.
The enhanced STK-6V is the first and only cost- effective integrated solution designed to exceed the unique and specific needs of the synthetic turf irrigation market. The ST System features total top access to all irrigation components making maintenance simple while keeping the surface intact, playable and safe. The exclusive IBS Infill Barrier System accommodates every field surface configuration including infill turf, short non-infill turf, synthetic running track, and in-concrete installations.
- Service with a smile, always online.
- Your happiness, our mission.
- Safe and Secure Shopping
- Quality Meets Affordability
HUNTER ST-1600 SYSTEMS
HUNTER ST-1600 SYSTEMS

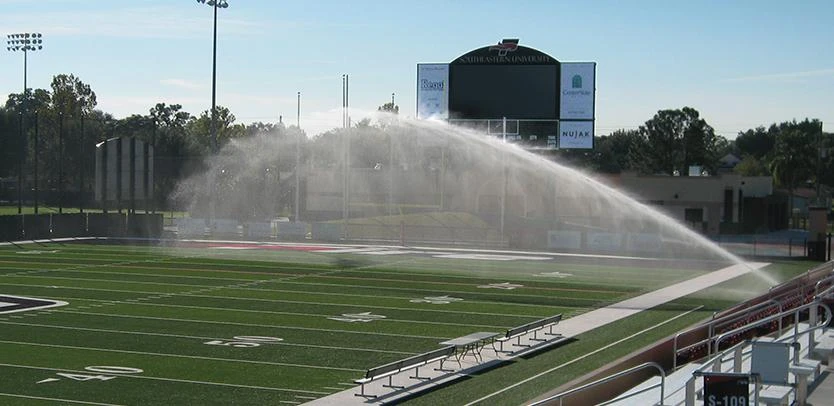

This ST System solution offers cleaning, cooling, and flushing capabilities to prepare synthetic sports fields for play.The enhanced STK-6V is the first and only cost- effective integrated solution designed to exceed the unique and specific needs of the synthetic turf irrigation market. The ST System features total top access to all irrigation components making maintenance simple while keeping the surface intact, playable and safe. The exclusive IBS Infill Barrier System accommodates every field surface configuration including infill turf, short non-infill turf, synthetic running track, and in-concrete installations. The robust and reliable manifold features 3” galvanized ductile iron components with heavy-duty grooved (Victaulic™ type) fittings. Also included is a slow-opening, low pressure loss control valve, isolation valve, drain valve, quick coupler valve, and the powerful ST-1600-HSB long- range gear-driven rotor.
- Nozzle choices: 6
- Standard nozzle: #20
- Nozzle range: #16 to #26
- Nozzle trajectory: 22.5°
- Isolated, grease-lubricated gear drive
- Factory-installed rubber logo cap (ST-1600-HSB)
- Movable stops (left and right) arc adjustment
- Arc setting: 40° to non-reversing 360°
- Ratcheting nozzle turret
- Telescoping rubber infill barrier on riser
- Adjustable speed of rotation: 0 to 65 seconds (High-speed models, 180° at 120 PSI)
- Internal construction: brass, stainless steel, and ball bearings
- Optional infill barrier system (ST-1600-HSB)
- Warranty period: 5 years component part
ADVANCED FEATURES
ST ROTOR: ST-1600
The ST-1600 and optional high-speed ST-1600HS rotors complement the ST-90 and STG-900 rotors by adding long-range capabilities. These enhanced radius rotors are perfect for football fields, where smaller radius rotors might fall a little short. They are even better for extra-wide field applications like soccer and field hockey. While the ST-1600 rotors are specifically designed for use on synthetic sports fields, they are also great for other applications such as pastures, horse arenas, zoo animal enclosures, dust control and even casual non-critical natural turf areas. ST-1600 rotors are available in two configurations:
ST-1600HSB
This pop-up high-speed model provides rotation speeds up to 65 seconds at a 180° arc setting with 120 PSI operating pressure. If desirable, the rotation speed can be slowed by using the manual speed adjustment knob.
ST-1600HSBR
This riser-mounted high-speed model provides rotation speeds up to 65 seconds at a 180° arc setting with 120 PSI operating pressure. If desirable, the rotation speed can be slowed by using the manual speed adjustment knob.
ST ROTOR AND MANIFOLD ASSEMBLY
- ST Infill Barrier System
ST-IBS1600
The unique IBS rubber cover kit includes vertical rubber barriers to retain infill material creating a safe transition where the rotor pops up. The IBS can also be trimmed to create a flat exposed surface area. - ST Adjustable Hanger Bracket
ST-BKT1600
This bracket supports the rotor within the vault and provides vertical elevation adjustments allowing for a perfect surface transition. - ST Manifold and Isolation Valve
ST-BVF30-K
Rated to 500 PSI working pressure, this 3″ galvanized ductile iron assembly includes Victaulic™ type grooved connections, a butterfly isolation valve, a point of connection for the quick coupler, and a 1″ brass drain valve. - ST Low-Loss, Slow-Opening Valve
ST-V30-KV: Heavy-duty control valve for STK-6V.
Valve: 3″ Grooved Vic Type
Pressure Loss: Ultra Low (1.5 PSI at 325 GPM)
Manual Control: Remote On-Off-Auto Selector and Solenoid (not shown) - ST Flexible Stainless Inlet Hose
ST-H30-K
3″ ultra-flexible stainless steel corrugated hose with stainless steel support braiding. Provides for minor offset and alignment of sub-mainline to the ST Manifold’s inlet connection.
ST H-BLOCK MANIFOLD SUPPORTS
ST-SPT-K
Adjustable support stands include a large footprint base made from recycled tire rubber and a 2″ vertically adjustable support rail.
(two required under manifold)
ST VAULTS TOTAL TOP SERVICEABILITY
Heavy-duty tapered fiberglass and polymer-concrete construction with pre-cast holes for rotor, quick coupler valve, and remote on-off-auto selector manifold assembly.
The ST-V30-KV valve kit includes a remotely located On-Off-Auto selector and solenoid manifold assembly. These convenient features bring valve manual control functions and solenoid splice connections closer to the surface for easy access.
Quick couplers provide a convenient source of water for washing down spills and water-soluble paint. Integrated in-vault design eliminates the need for additional quick coupler enclosures.
ST ROTORS HAVE MANY USES
While ST Rotors are specifically designed for cleaning and cooling synthetic turf sports fields, they are also great for other applications such as pastures, horse arenas, dust control and even casual natural turf area.
| Catalogue Number | HSST-1600-BHS ST-1600B Series Pop Up, High Speed, HSST-1600-BR ST-1600BR Series Riser Mounted, HSST-1600-IBS In Fill Barrier System, HSST243642-B Vault for ST-1600-B System, HSST-BKT-1600 ST-1600 Hanger Bracket |
|---|
