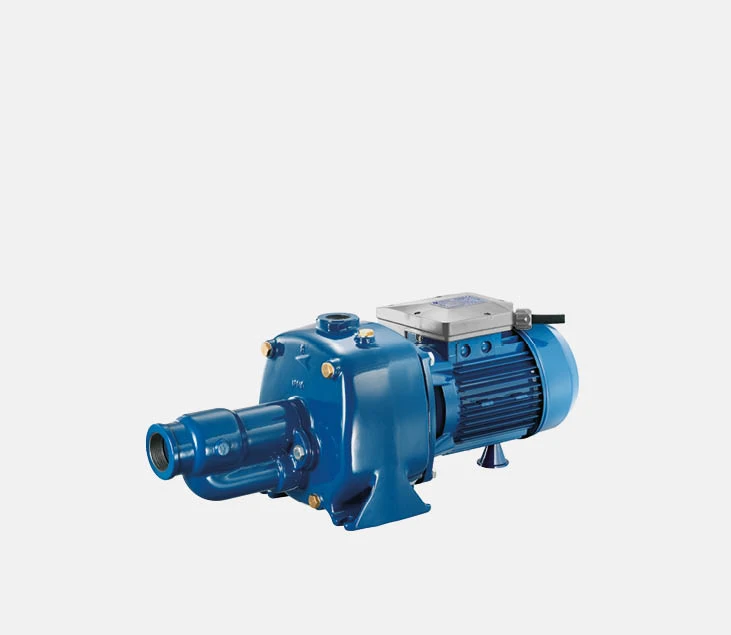

Jet Pump : JA150-300 Cast Iron Inline Self Priming Single Phase Pumping System UK



MODELS : JA150-300-M

DESCRIPTION

Jet Pump Self-priming centrifugal pump suitable for water supplies (even if mixed with gas).

Suitable for small and medium household and civil systems, when connected to autoclave tanks, an automatic pressurisation system.

FEATURES
Body Pump	cast iron
Impeller	Noryl or Brass
Temperature of the liquid	0-50 ° C

ENGINE
typology	3 ~ 230 / 400V-50Hz; 1 ~ 230V-50Hz with thermal protector
Insulation class	Value is not available
Degree of protection	Value is not available

Specifications:
Jet Pump type self-priming electric pumps.

Suction up to 7-8 metres deep.
Motor sealed auto-ventilated.
Max. pressure: 8 bar
Water temperature: max. 50°C
These pumps are ready for installation, by a qualified electrician.
Connection: female thread
Pump body: cast iron
Material Impeller: noryl
Shaft: stainless steel 416
