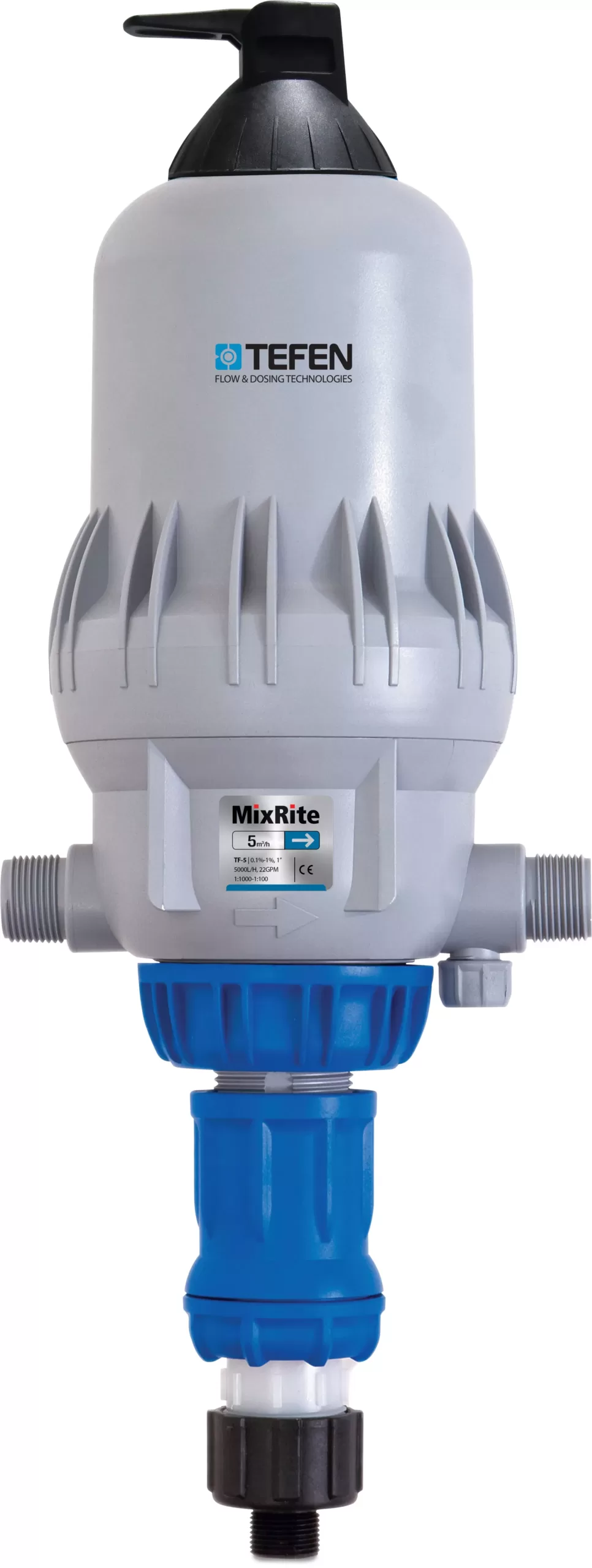

Tefen Dosing pump, type MixRite 10 On/Off

All units have a standard hydraulic On/Off system, for manual and electric alternatives please consult with us.
Every unit comes with a suction tube, mounting bracket, a multi language manual (RUS, DE, ES, FR, ITA, EN, PT) and a seal kit containing an upper piston seal, lower piston seal, suction seal and a small quantity of grease.
The suction tube length is 1.5m long and 10mm diameter for the type 0.2 – 2.0% and 16mm diameter for the type 0.5/1.0 – 4.0%.
These types are the standard AG (Agriculture) models that come with NBR seals which are to be used with fertilizer solutions and not to be used with acids.
For a complete overview and more information on the chemical compatibility table please consult with us in order to select the right model for your application.
Installation can be done in different ways: In-line, dual, manual by-pass, multi zone manual by-pass and controlled by-pass available in 2 sizes 1 1/2″ x 10mm x 1 1/2″, 02-2% Adjustable mixture1 1/2″ x 16mm x 1 1/2″, 1-5% Adjustable mixtur
